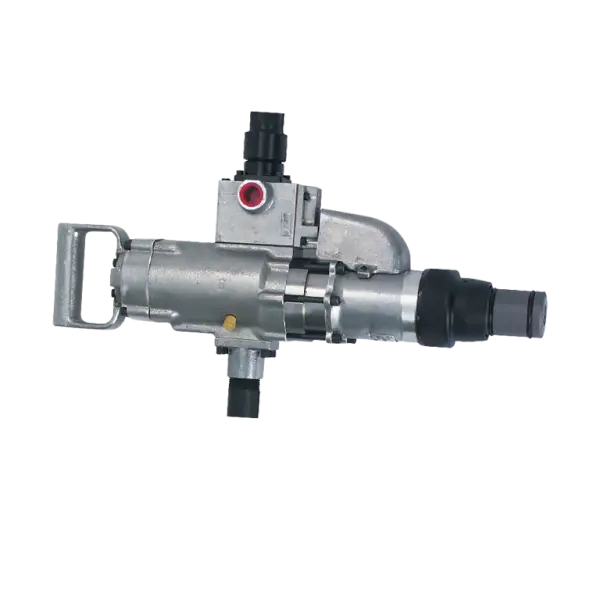

1550-900 Airetrol

Click image to enlarge
(8404290)
0

Quantity:
Add to Quote
Specifications
  • Manufacturer: Airetool
  • Type: Pneumatic, Torque Controlled
  • Overall Length (in.): 18
  • Overall Length (mm): 457
  • CFM: 70
  • Free Speed (Rpm): 756
  • Max. Torque (Ft. Lbs): 30.7
  • Max. Torque (mm): 41.6
  • Min. Torque (Ft. Lbs): 4.7
  • Min. Torque (mm): 6.4
  • Operating Hose (in.): 3/4
  • Operating Hose (mm): 19.1
  • Quick Change Chuck (in.) Included: 3/8, 1/2
  • Quick Change Chuck (in.) Optional: 3/4, 1
  • Series: 1550 Airetrols
  • Side To Center (in.): 1.938
  • Side To Center (mm): 49.2
  • Square Drive (in.): 1/2
  • Tube Capacity (in.): 1-1/2
  • Tube Capacity (mm): 38.1
  • Weight (kg): 12.25
  • Weight (lbs.): 27
