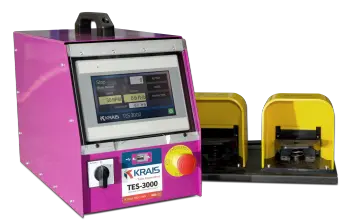

The Digital Tube Expanding System features a range of pwerful and efficient servo motors. Variable Speed and Torque repeatability +/- 1% are few of the advantages of this system. Created for the demanding customer, this system ensures uniform tube expansion over a wide range of tube diameters and materials, greater efficiency and accuracy combined withease of use make this system, simple, affordable and extremely fast.
Basic Parameters
- Power Supply
- TES 3000: 400V 50/60Hz
- For tubes: 1/2" - 1-1/2"
- Control unit weight: 14kg
- Footswitch weight: 5kg
- Dimensions: 800 x 200 x 900mm
Main TES Features
- Purely digital and modular system
- High tech servo drive and motor assure accuracy, high quality and repeatability of the results and efficient work.
- Extremely easy and user friendly interface on 7" touch screen
- Supported languages: English, Korean, German, Spanish, Portuguese, Chinese, Polish
- USB Flash Drive availablie to dump expanding log files (48 MB of internal storage space for the log files)
- Easy software upgrade with USP flash memory
- CE compliant. In full accordance with RoHS compliance
- Motor equipped with EnDat encoder
