Slim Fit Split Frame Clamshell Machines

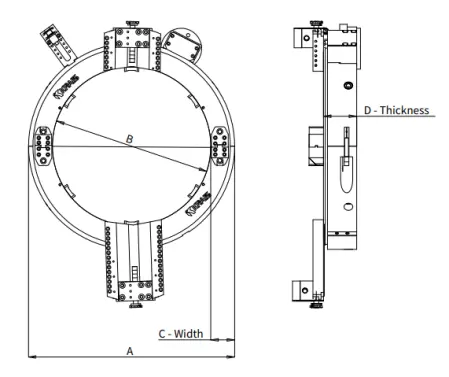

KRAIS SFSF portable Slim Fit Clamshell series are designed for strength and easy handling.  Each of the machine from the SFSF series have a height of 3,248" (82.5 mm) up 24" and 4.47" (113.7mm) up to 48" and a width of 2.5" (63.5 mm) resulting narrow body low profile design that makes the SFSF series the ideal choice in tight spaces.

• 15 Standard models cover a range from 1" (33.4 mm) to 48" (1219mm) OD
• Pneumatic, hydraulic and electric drive options are available.
• Motor mount on key ways to prevent the motor to twist and potential damage on gear ring.
• Several different drive options are available to best position the motor for a specific machining application
• All pneumatic and electric motors are design and manufactured by Krais after 20 years experience of manufacturing pneumatic drives for boiler and heat exchangers tube rolling motors.
• SFSF series clamshells can be equipped a wide range of accessories to increase performance and expand capabilites.
• Adjustable locator pads minimize the number of locators.

Features

• Choice of 3 positions with different travel length tool holder with heat treated slights
• Lever type tripper module for operator safety
• Steel plates on the back part for machine squaring on the pipe
